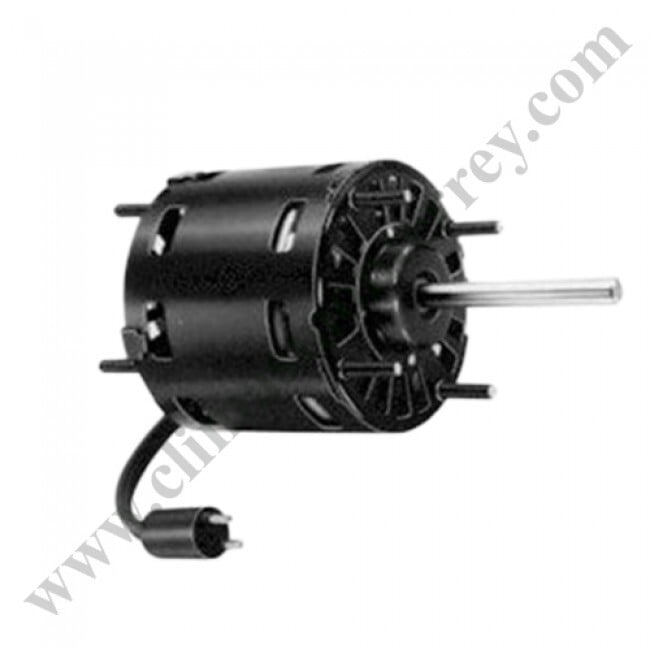

Motor Fasco 1/20 Hp, 115 V, 1550 Rpm, 1 Velocidad, Rotacion Cw, Chumacera - D1124

Name: Motor Fasco 1/20 Hp, 115 V, 1550 Rpm, 1 Velocidad, Rotacion Cw, Chumacera - D1124
Brand: Fasco
SKU: D1124
Price: 1973.33 MXN
Availability: InStock

Categorías Relacionadas

Refacciones para Motores

No retornable

MXN$1,973.33

Descargas

Ficha Técnica PDF

Available Offer

Detalles del producto

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 115 V
Speed: 1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.10 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 6.37 in
Frame Length: 2.82 in Shaft Diameter: 0.313 in
Shaft Extension: 3 in

General Specifications

UPC: 815585028437 Weight: 3.80 LB
Packaged Length: 8.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico

Motor de reemplazo directo OEM
3,3" de diámetro
Poste sombreado
Protegido térmicamente
Al aire libre
Aislamiento clase B, temperatura ambiente de 40 °C
Cojinete de manguito
Eje de 5/16" de diámetro con parte plana
Cables de 13" con enchufe moldeado
Extremo del eje y extremo de avance de pernos extendidos

Especificaciones

Motores

Cantidad por Caja

:
1
Capacidad en HP

:
1/20
RPM
:

1550
Cantidad de Velocidades

:
1
Voltaje

:
115/1/60
Polos

:
4
Rotacion

:
CW
Rodamientos

:
Chumaceras
Numero de Flechas

:
1
Diámetro de Flecha (Pulgadas)

:
5/16
Longuitud de Flecha (Pulgadas)

:
2.25
Diametro del Cuerpo (Pulgadas)

:
3.3
Armazón (Frame)

:
3.3

Calificaciones y Reseñas

Phase:	1	Output HP:	1/20 Hp
Output KW:	0.04 kW	Voltage:	115 V
Speed:	1550 rpm	Service Factor:	1
Frame:	3.3	Enclosure:	Open Air Over
Thermal Protection:	Thermally Protected	Ambient Temperature:	40 °C
Frequency:	60 Hz	Current:	2.10 A
Duty:	Air Over	Insulation Class:	B
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	1

Electrical Type:	Shaded Pole	Starting Method:	Across The Line
Poles:	4	Rotation:	Clockwise Shaft End
Mounting:	Extended Studs	Drive End Bearing:	Sleeve
Opp Drive End Bearing:	Sleeve	Frame Material:	Steel
Shaft Type:	Flat	Overall Length:	6.37 in
Frame Length:	2.82 in	Shaft Diameter:	0.313 in
Shaft Extension:	3 in

UPC:	815585028437	Weight:	3.80 LB
Packaged Length:	8.00 IN	Packaged Width:	3.38 IN
Packaged Height:	3.38 IN	Country of Origin:	Mexico

Motor Fasco 1/20 Hp, 115 V, 1550 Rpm, 1 Velocidad, Rotacion Cw, Chumacera - D1124
