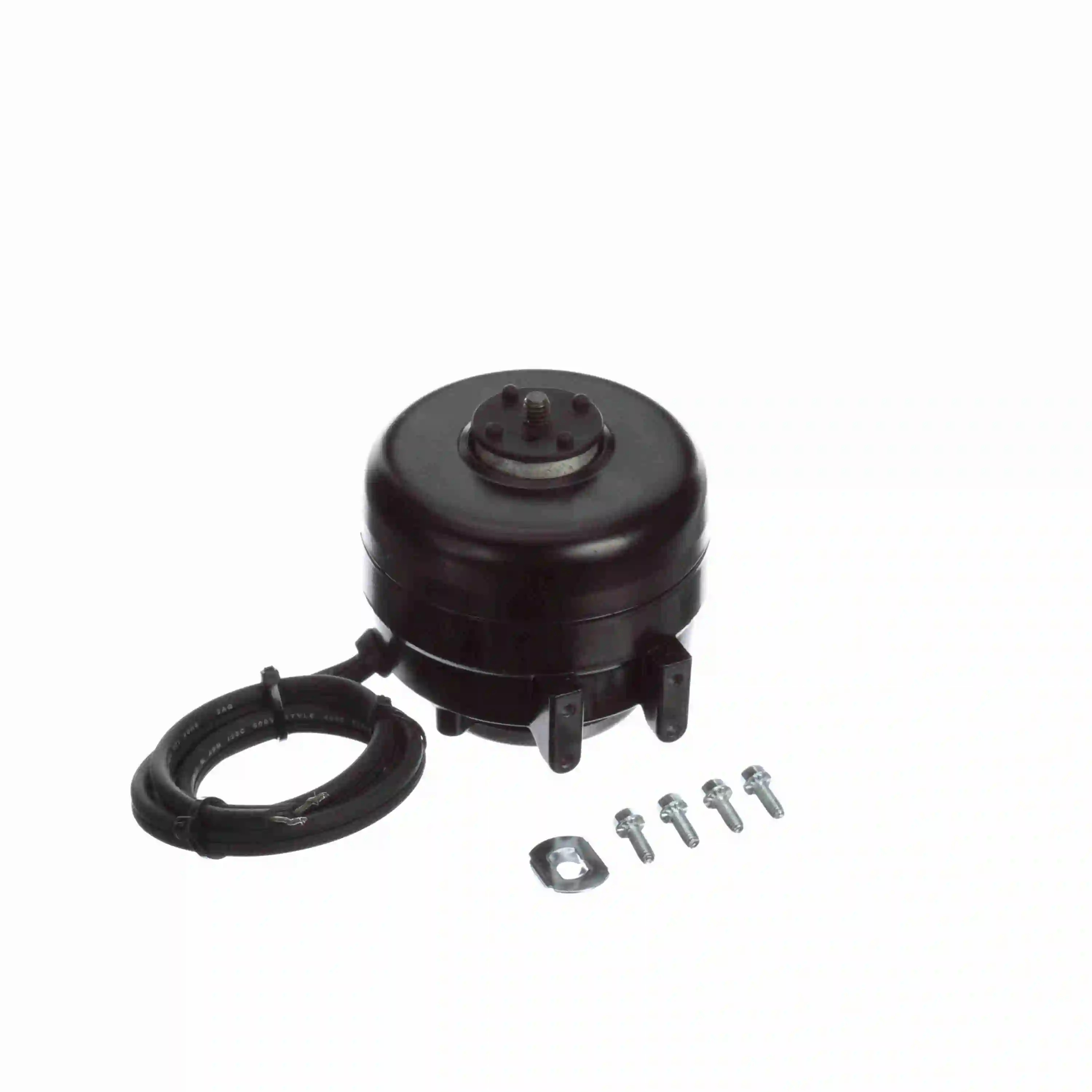

AccesoriosMotoresMotores RefrigeraciónMotor Acorazado Fasco UB558 Motor 6 Watt 1550 RPM 115v CW - UB558
Fasco UB558 Motor 6 Watt 1550 RPM 115v CW - UB558
MXN$945.00
Descargas
Available Offer
Compartir :
Detalles del producto
Nameplate Specifications
| Phase: | 1 | Output Watts: | 6 W |
| Voltage: | 115 V | Speed: | 1550 rpm |
| Service Factor: | 1 | Frame: | UNIT BEARING |
| Enclosure: | Totally Enclosed Air Over | Thermal Protection: | Impedance |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 0.36 A | Duty: | Continuous |
| Insulation Class: | B | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Opposite Shaft End |
| Mounting: | 2 BOSS/OSE 5 HOLES | Drive End Bearing: | Unit |
| Opp Drive End Bearing: | Unit | Frame Material: | Aluminum |
| Shaft Type: | Threaded | Frame Length: | 3.12 in |
| Shaft Diameter: | 1/4x20 in | Shaft Extension: | .415 in |
General Specifications
| UPC: | 786674069894 | Weight: | 2.22 LB |
| Packaged Length: | 4.30 IN | Packaged Width: | 3.90 IN |
| Packaged Height: | 4.20 IN | Country of Origin: | China |
- Motor de refrigeración
- Rodamiento unitario
- Poste sombreado
- Protección contra impedancia
- Aire totalmente cerrado
- Aislamiento de clase B, ambiente de 40 °C
- Rodamiento - Unidad
- Eje roscado 1/4 x 20
- Cables de 28" con tira de .05"
- 2 pies de montaje, 5 orificios de montaje traseros
Especificaciones
Motores
- Cantidad por Caja:1
- Capacidad en Watts:6
- RPM:1550
- Cantidad de Velocidades:1
- Voltaje:115-1-60
- Polos:4
- Rotacion:CW
- Numero de Flechas:1
- Diámetro de Flecha (Pulgadas):1/4
- Amperaje:0.36 A
- Armazón (Frame):Unit Bearing Acorazado
